Collapsed element affects layout in Flexbox #8582

@Whip

Description

@Whip

Environment
Provide version numbers for the following components (information can be retrieved by running tns info in your project folder or by inspecting the package.json of the project):

  • CLI: 6.5.0
  • Cross-platform modules: 6.5.0
  • Android Runtime: 6.5.1
  • iOS Runtime: 6.5.1

Describe the bug
In a flexbox layout I want two elements to be on opposite edges of the screen so I use justifyContent="space-between" to accomplish that. It works fine when there are just two elements but if there's a third element in collapsed visibility, it makes the layout different (screenshot below).

If the third element is collapsed, it shouldn't really affect the layout, right?

To Reproduce

<FlexboxLayout flexDirection="column" justifyContent="space-between" alignItems="center" backgroundColor="#CCC">
	<AbsoluteLayout height="300" width="300" backgroundColor="green">
	</AbsoluteLayout>

	<AbsoluteLayout height="300" width="300" visibility="collapsed" backgroundColor="blue">
	</AbsoluteLayout>

	<GridLayout columns="*,*" height="70" backgroundColor="red">
		<StackLayout col="0" padding="5">
			<Button class="-outline" tap="profile" text="My Profile" />
		</StackLayout>
		<StackLayout col="1" padding="5">
			<Button class="-outline" tap="logout" text="Logout" />
			</Button>
		</StackLayout>
	</GridLayout>
</FlexboxLayout>

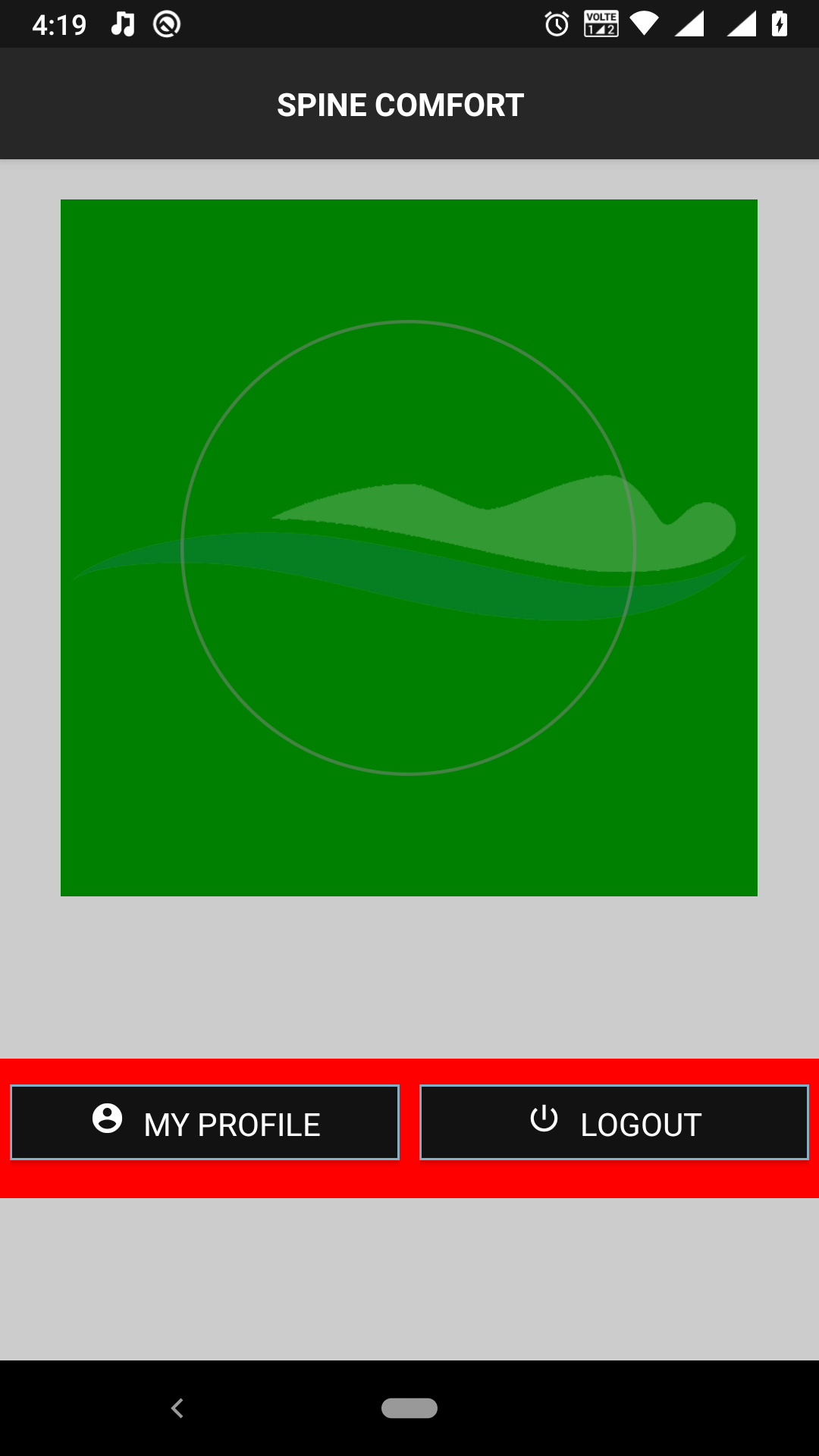

This results is
Screenshot_20200516-161937

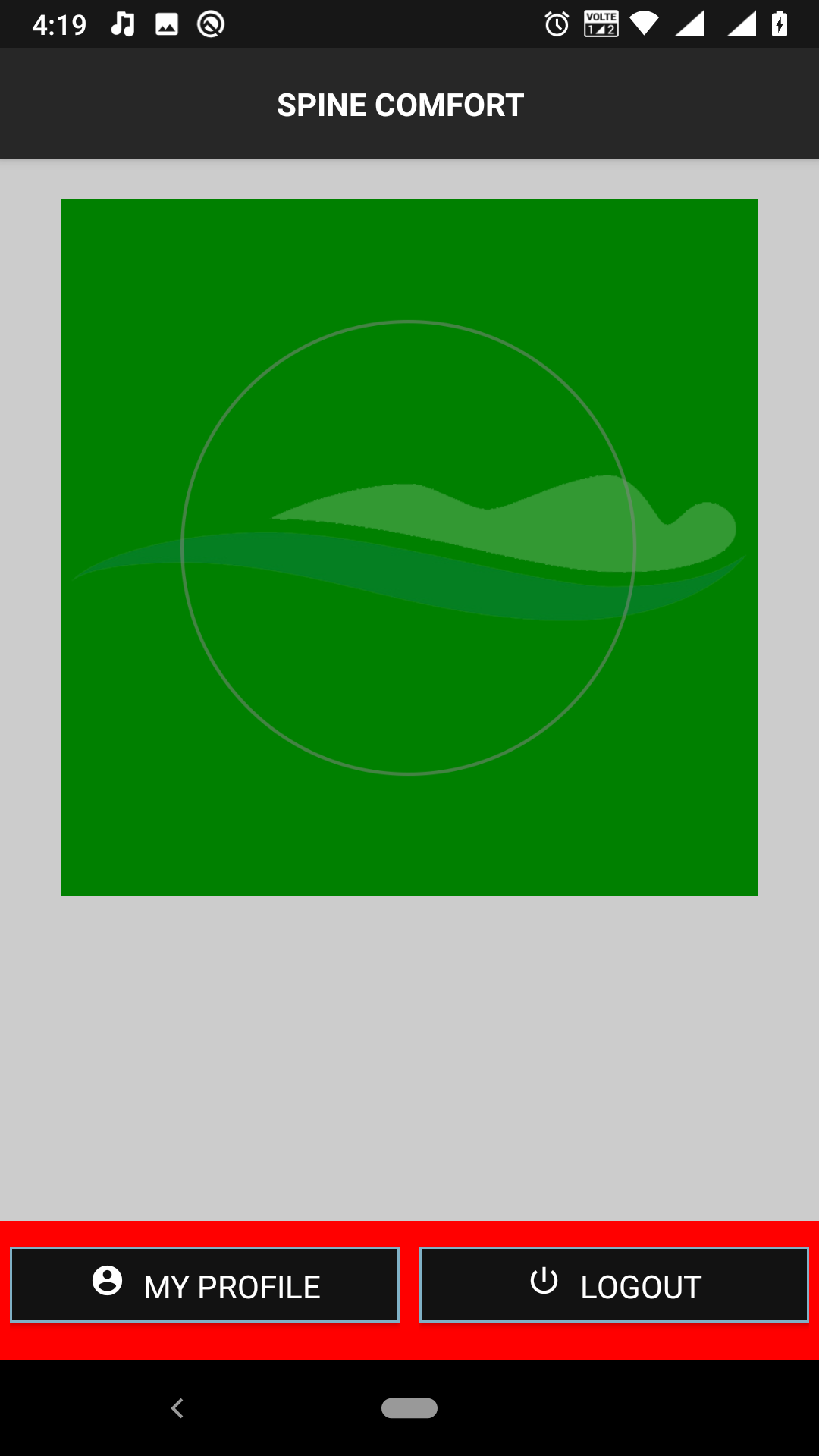

Expected behavior
Screenshot_20200516-161950
